House Plans
For New Dwellings, Extensions and Garages etc.
We provide the following:
Planning applications;
- Completion of planning documentation
- Site location drawings
- Site layout drawings
- House plans, elevations & sections
Building control applications;
- Construction drawings & details
- SAP Calculations
- Engineers calculations (Where required)

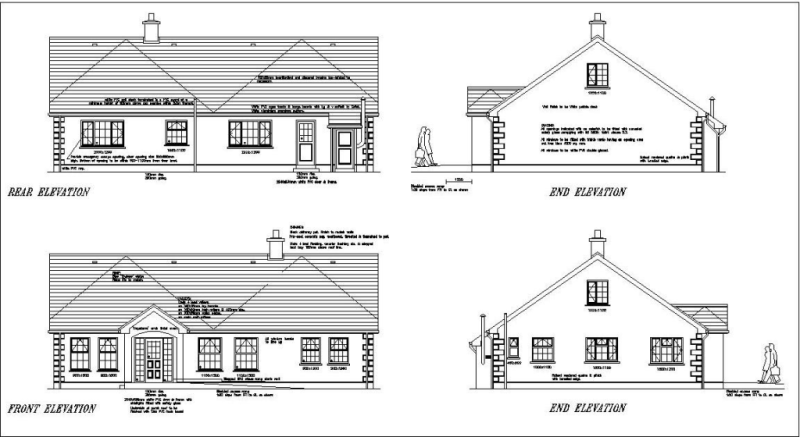

3 Bed bungalow Approx 1400 Sq feet (Click on drawings below)

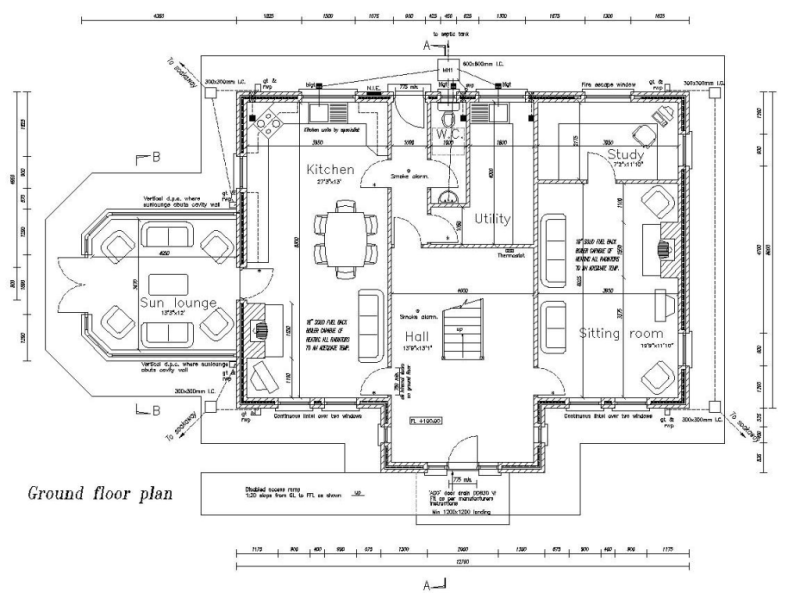

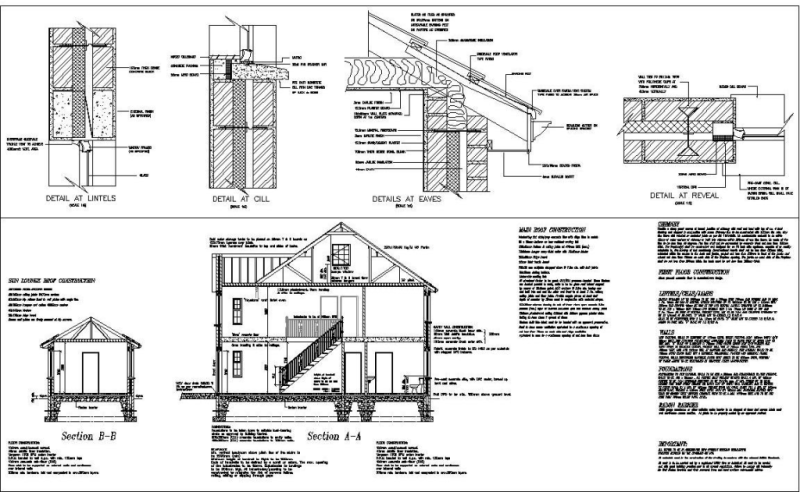

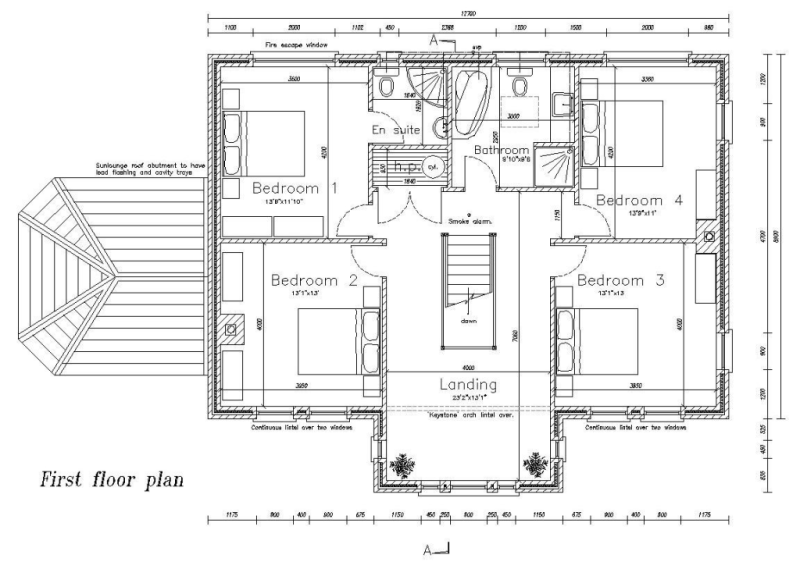

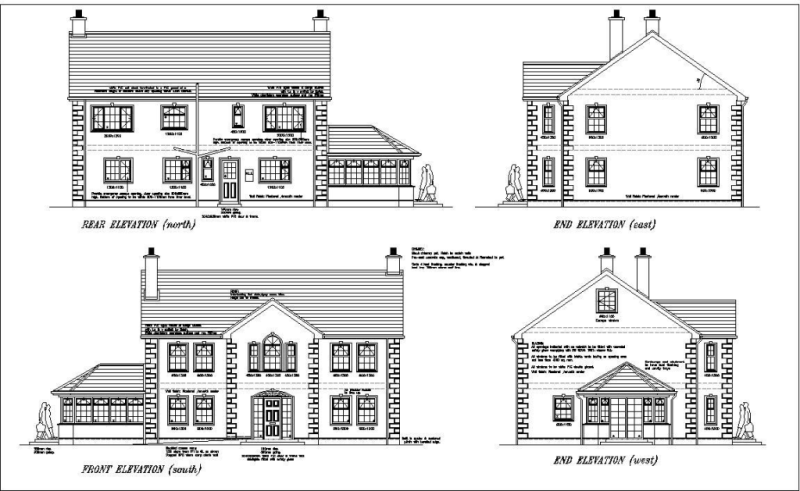

4 Bed house Approx. 2300 Sq. feet

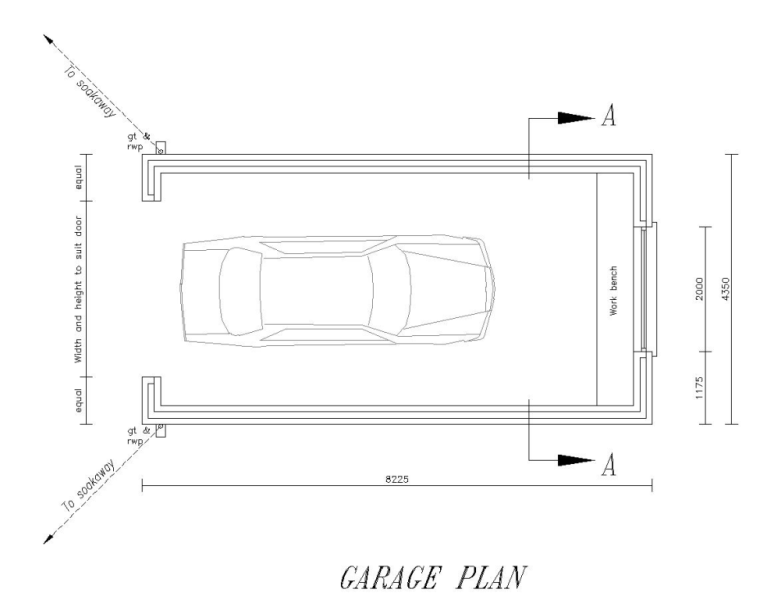

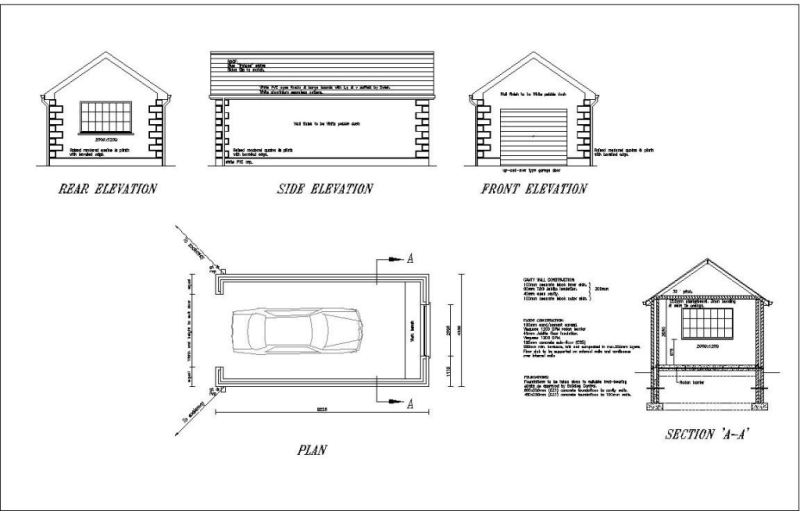

Garage for 1 car
Sun lounge extension
Contact us
McWall Drawing & Design Ltd
78 Carrickasticken Road
Forkhill,
Newry
Co. Down
BT35 9RL
Tel: +44 28 30 888 184
Email: Click here
Areas of Drawing expertise:
- Water treatment plant steelwork & equipment
- Cement & Power plants
- Meat & Food processing plants
- Petro Chemical plants
- Platforms, Walkways & handrail
- Stairs & ladders
- Materials Handling equipment
- Recycling machinery
- Agricultural machinery
- Prototypes & inventions
- Feature Stairs
- Hand railing
- Balustrades & balconies
- Canopies
- Steel structures/supports
- Mezzanine floors
- Access stairs, ladders & platforms
- Bridges
- Prototype drawings
- Part drawings
- Patent application drawings
- Assistance with the patent process
