Structural steelwork detailing service

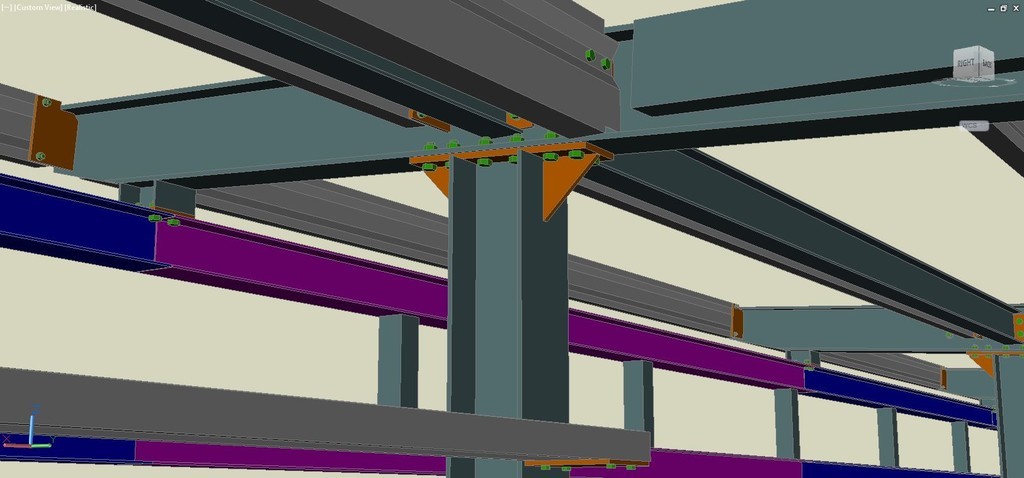

Our steelwork detailing service uses the latest Building Information Modeling (BIM) 3-D structural steel detailing software to automate the production of drawings, bills of materials (BOM) and computer controlled machinery NC files. This drastically increases productivity and drawing quality, while reducing the risk of errors.


After we produce the intelligent 3-D model we can provide the following:

  • Electronic copies of 3-D models for visualisation by Architects & Structural Engineers
  • General arrangement & 3-D drawings (In AutoCAD & PDF formats)
  • Fabrication / shop drawings
  • Materials, bolts & loading lists
  • Files for CNC machinery (Saw/drill lines and laser/plasma profile cutting machines)
  • Un-folded plate development drawings
  • Electronic and paper copies of all drawings and data

Typical projects include:

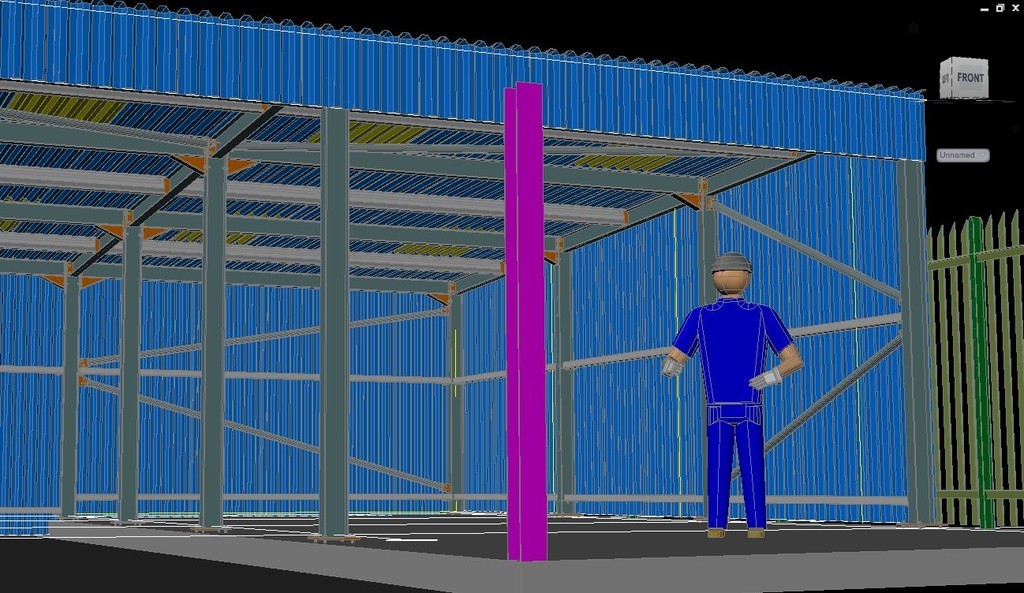

  • Structural steel buildings
  • Mezzanine floors
  • Platforms & bridges
  • Machinery & plant support structures
  • Canopies & glass support structures

Tender 3-D models & materials lists:

We can help you to win tenders for steelwork contracts by producing a 3-D model & generating a list of all materials required for the project. This service helps to ensure you accurately cost the raw materials and predict production & installation lead times etc


To email your enquiry, click here

Contact us

McWall Drawing & Design Ltd
78 Carrickasticken Road


Co. Down

BT35 9RL


Tel: +44 28 30 888 184

Email: Click here


Areas of Drawing expertise:


Process Industry

  • Water treatment plant steelwork & equipment
  • Cement & Power plants
  • Meat & Food processing plants
  • Petro Chemical plants
  • Platforms, Walkways & handrail
  • Stairs & ladders


  • Materials Handling equipment
  • Recycling machinery
  • Agricultural machinery
  • Prototypes & inventions

Architectural steelwork

  • Feature Stairs
  • Hand railing
  • Balustrades & balconies
  • Canopies


  • Steel structures/supports
  • Mezzanine floors
  • Access stairs, ladders & platforms
  • Bridges


Inventions & prototypes

  • Prototype drawings
  • Part drawings
  • Patent application drawings
  • Assistance with the patent process
