Water & Wastewater Treatment plants.

We use our wealth of experience gained over more than 30 years in the Water & Waste Water Treatment (WwTW) industry to deliver solutions that sharpen our customer's edge and increase their capabilities.

We offer the following integrated drawing & design services:

• Site layout & tender proposal drawings
• Detail design General Arrangement drawings
• Process & instrumentation (P & I D) drawings
• Hydraulic profile drawings
• Lifting strategy drawings
• Hazardous Area Classification drawings

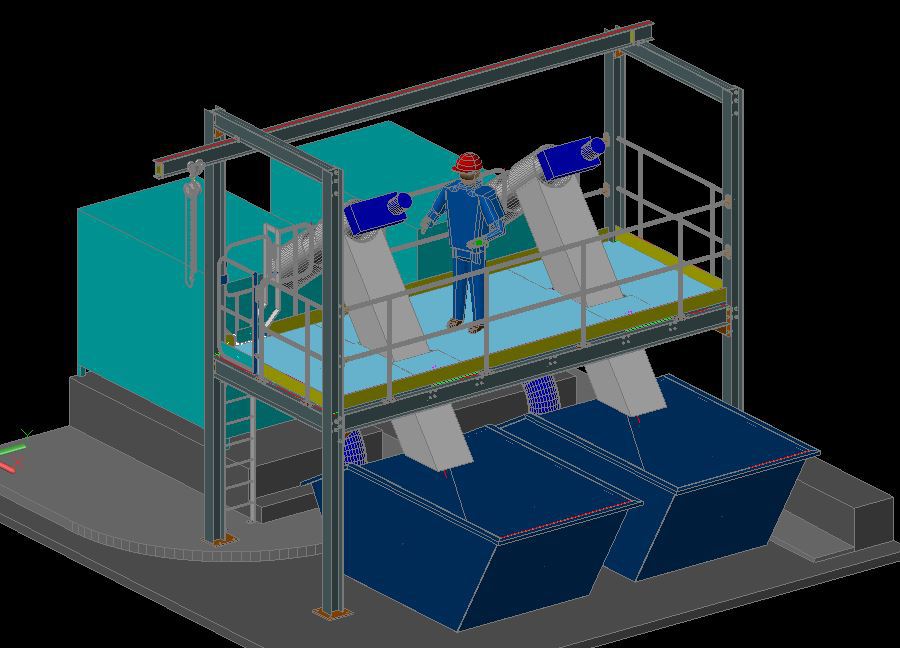

• Access platforms, stairs & ladder drawings
• Pipework layouts
• Pumping station GA drawings
• Rotating half bridge scraper drawings for WwTW primary & secondary settlement tanks
• Fixed bridge scraper drawings
• Scraper geared motor Power & torque calculations
• Assistance with CE technical files

After we produce the intelligent 3-D model we can provide the following:

• Electronic copies of 3-D models for visualisation by Consultant Engineers & main clients
• General arrangement & 3-D drawings (In AutoCAD & PDF formats)
• Fabrication / workshop drawings
• Materials, bolts & loading lists
• Files for CNC machinery (Saw/drill lines and laser/plasma profile cutting machines)
• Un-folded plate development drawings

To email your enquiry, click here

Other areas of drawing & detailing expertise include:

• Recycling plant conveyor access steelwork
• Petro chemical plant access stairs walkways
• Pharmaceutical plant steelwork & equipment
• Meat and food processing plant equipment
